Large Waterproofing Projects

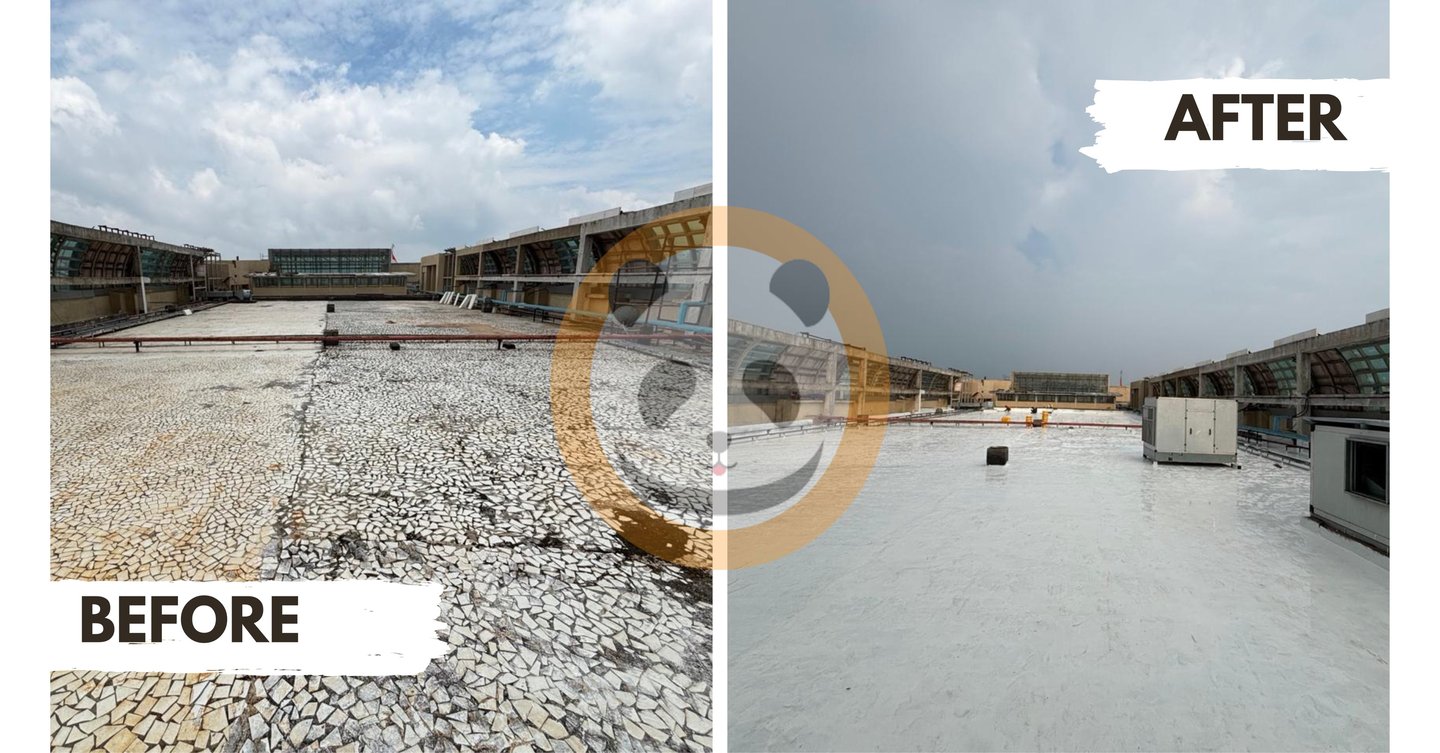

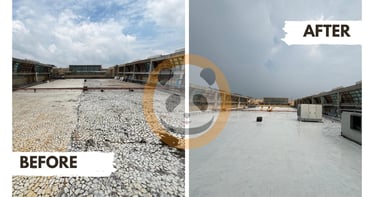

Polyurethane (PU) Based Waterproofing in AIIMS Deoghar Academic Block (Exposed Roof)

Project Overview

Skadooshtech successfully executed a large-scale, high-performance waterproofing project for the terrace of the Academic Building at AIIMS Deoghar. Working under a primary NBCC contractor, our team delivered a comprehensive solution designed to meet the rigorous standards of a premier national healthcare institution.

Technical Execution & Scope

While the initial work order focused on a 10,000 sq. ft. section, our total execution expanded to cover over 25,000 sq. ft. of contiguous roof area. The project utilized a multi-stage Polyurethane (PU) based waterproofing system to ensure long-term structural integrity and leak prevention.

Key Project Phases included:

• Surface Preparation: Mechanical and manual cleaning to remove laitance and dust, ensuring a pristine substrate for membrane adhesion.

• Structural Repair: Extensive sealing and crack filling using Sikaflex PU Sealant to address structural vulnerabilities before membrane application.

• System Application: Implementation of a high-build Sikalastic-562 IN system. The application consisted of:

  • One dedicated primer coat for maximum substrate bonding.

  • Three reinforced coats of PU-based liquid membrane.

  • Integrated Glass Fabric reinforcement for enhanced tensile strength and durability.

• Validation: Rigorous leakage and seepage testing of the entire terrace area to ensure 100% moisture protection.

Quality Assurance & Compliance

• Standardization: All works were executed following the methodology approved by NBCC officials.

• Premium Materials: Exclusively utilized Sika brand products, ensuring the highest industrial grade of waterproofing chemicals.

• Long-term Reliability: The project was backed by a Warranty Bond, reflecting our confidence in the system's performance and our application expertise.

25000+ sqft

Area Of Application

1.5mm

Thickness of the coating

Looking for professional waterproofing services? We provide end-to-end solutions for industrial, commercial, and residential spaces. Whether it’s high quality waterproofing or specialized construction chemical applications, we deliver quality that lasts.

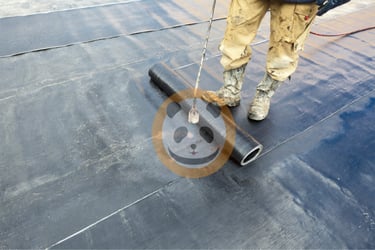

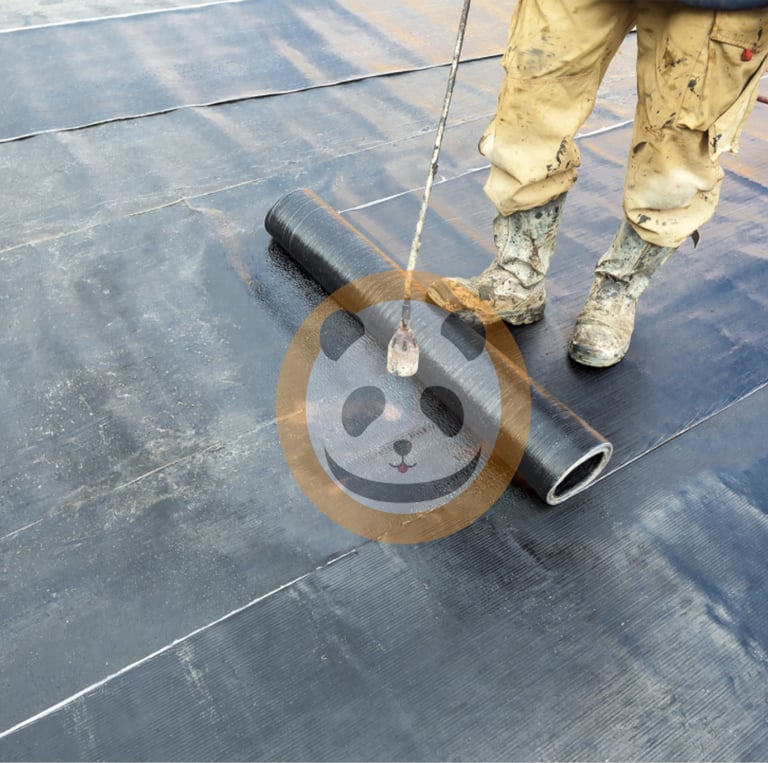

Heavy - Duty APP Membrane Waterproofing System in AIIMS Deoghar

Skadooshtech successfully executed a premium, heavy-duty membrane waterproofing system at AIIMS Deoghar, collaborating under Nutan Bharat Nirman for a critical infrastructure project overseen by NBCC. The project required robust, long-lasting weatherproofing engineered to protect public health infrastructure against extreme thermal variations and heavy monsoon cycles.

Technical Execution & Scope

The project involved the complete preparation and installation of a high-performance Atactic Polypropylene (APP) modified bituminous waterproofing system across a substantial contiguous layout.

Key Highlights of the Execution: * Total Volume Managed: Successfully blanketed and protected an expansive area of over 900+ square meters.

• Premium Material Specification: Utilized industry-grade 3mm APP Membrane from the Berger ProShield range, known for its superior tensile strength, dimensional stability, and resistance to UV degradation.

• Application Methodology: Employed advanced torch-welding techniques to achieve seamless joint bonding across the entire substrate, creating an impenetrable monolithic barrier against water ingress.

• Compliance Standards: The execution strictly adhered to the rigorous structural engineering and quality benchmarks set by NBCC officials for central government institutional projects.

3mm

APP Membrane Waterproofing

This successful handover underscores Skadooshtech’s specialization in deploying heavy-duty, torch-applied membrane systems for massive institutional footprints where long-term durability is non-negotiable.
